Welcome to Polinovel Technology Co., Ltd



  • 图片0

    OVERVIEW



    This 12.8V 22Ah lithium battery pack is designed for golf trolley, and it is extremely easy to install with all accessories available.


     DETIAL VIEW

    Polinovel caring every details of the lithium battery pack to assure you get the most suitable and safest battery.





    SPECIFICATIONS

    Item

    Parameter

    Battery Type

    LiFePO4

    Nominal Voltage

    12.8V

    Nominal Capacity

    22Ah

    Energy

    281.6Wh

    Internal Resistance

    ≤40mΩ

    Charge Method

    CC/CV, please use special lithium charger

    charge Voltage

    14.4±0.15V

    Discharge Cut-off Voltage

    About 10V

    Standard Charge Current

    ≤ 5A

    Max. Continuous Discharge Current

    16A, ≤25A ( ≤ 5Min)

    Charging Terminal

    Lotus seat

    Discharging TerminalM6, discharge seat
    5V1A USB

    Cycle Life

    > 1500 cycles

    Dimension

    Length: 168±1mm

    Width: 128±1mm

    Height: 102±1mm

    Weight

    2.9±0.1Kg

    Operation Temperature Range

    Charge: 0~45℃;

    Discharge: -20~60℃

    Recommended operating temperature: 15℃~35℃

    Self-Discharge Rate

    Residual capacity: ≤3%/month; ≤15%/years

    Reversible capacity: ≤1.5%/month; ≤8%/years

    Storage Temperature & Humidity Range

    Less than 1 month: -20℃~35℃, 45%RH~75%RH

    Less than 3 months: -10℃~35℃, 45%RH~75%RH

    Recommended storage environment: 15℃~35℃,45%RH~75%RH







    CUSTOMIZE

    No matter you are going to replace the conventional lead acid battey or create new battery for golf trolley , tell us your detail requirements, Polinovel offer free design lithium battery pack solution in Specification including:



    -Battery capacity

    -Charge current

    -Discharge current

    -Dimension in LxWxH

    -Terminals & Connectors

    -Logo printing





    Whether you are ready to order or just want a price quote we will do our best to assist you. Please fill in the form below with your contact info, or send your inquiry to sales@plgenergy.com, we will get back to you as soon as possible.


    Send

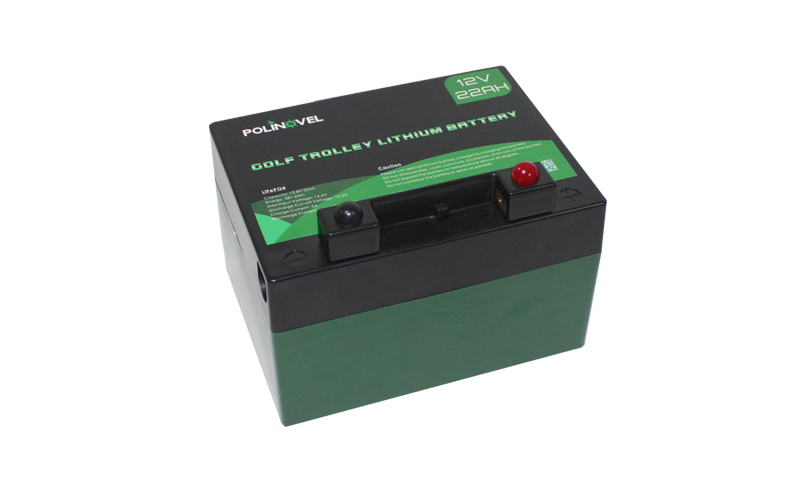

    12V 22Ah Golf Trolley Lithium Battery

    Model:   PLFP12-22
