    OVERVIEW

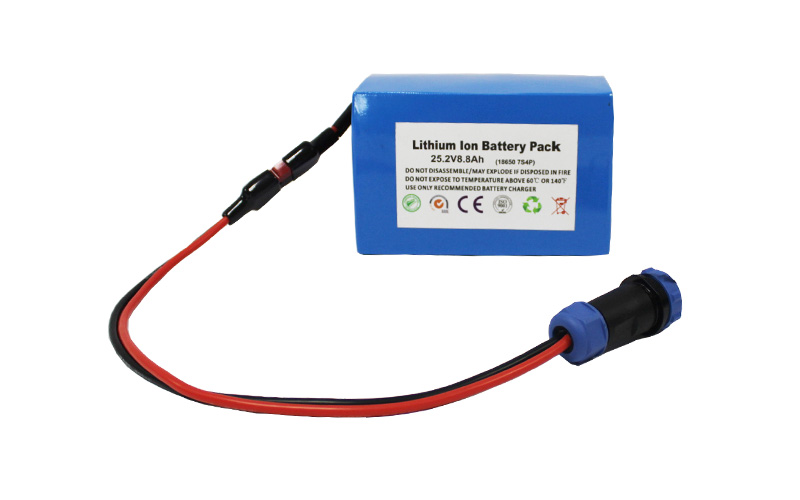

    This 25.2V 8.8Ah lithium battery pack is designed for golf trolley, and it is extremely easy to install with all accessories available.




    SPECIFICATIONS

    Item

    Parameter

    Battery Type

    Li-ion

    Nominal Voltage

    25.2V

    Nominal Capacity

    8.8Ah

    Energy

    221.76Wh

    Internal Resistance

    ≤120mΩ

    Shell materialPVC

    Charge Method

    CC/CV, please use special lithium charger

    Limited Charge Voltage

    29.05-29.4V

    Discharge Cut-off Voltage

    About 21V

    Standard Charge Current

    ≤ 2A

    Max. Continuous Discharge Current

    4-20A ( ≤ 5Min)

    Pulse Discharge Current (<3s)

    21A

    Cycle Life

    > 500 cycles

    Dimension

    Length: 146±3mm

    Width: 95±2mm

    Height: 74±2mm

    Weight

    1.45±0.1Kg

    Operation Temperature Range

    Charge: 0~45℃;

    Discharge: -20~60℃

    Recommended operating temperature: 15℃~35℃

    Self-Discharge Rate

    Residual capacity: ≤3%/month; ≤15%/years

    Reversible capacity: ≤1.5%/month; ≤8%/years

    Storage Temperature & Humidity Range

    Less than 1 month: -20℃~35℃, 45%RH~75%RH

    Less than 3 months: -10℃~35℃, 45%RH~75%RH

    Recommended storage environment: 15℃~35℃,45%RH~75%RH







    CUSTOMIZE

    No matter you are going to replace the conventional lead acid battey or create new battery for golf trolley , tell us your detail requirements, Polinovel offer free design lithium battery pack solution in Specification including:



    -Battery capacity

    -Charge current

    -Discharge current

    -Dimension in LxWxH

    -Terminals & Connectors

    -Logo printing





    Whether you are ready to order or just want a price quote we will do our best to assist you. Please fill in the form below with your contact info, or send your inquiry to sales@plgenergy.com, we will get back to you as soon as possible.



    Send

    25.2V 8.8Ah Golf Trolley Lithium Battery

    Model: LCR259
