Welcome to Polinovel Technology Co., Ltd



  • 图片0

    OVERVIEW

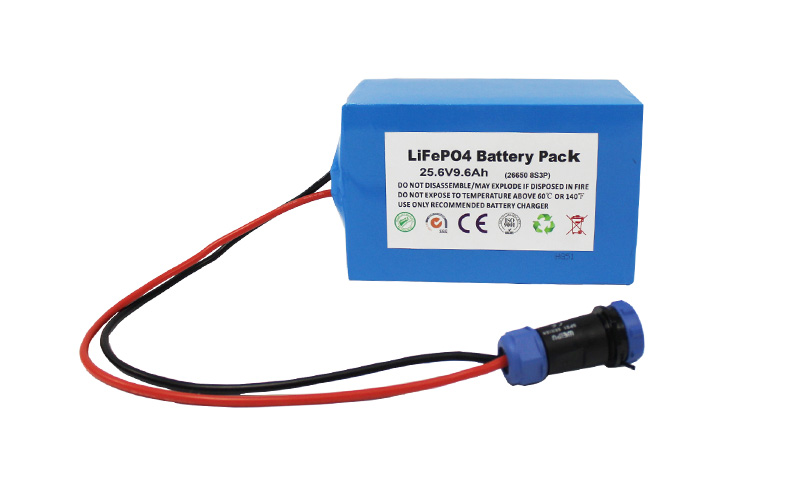

    This 25.6V 9.6Ah lithium battery pack is designed for golf trolley, it is extremely easy to install with all accessories available.




    SPECIFICATIONS

    Item

    Parameter

    Battery Type

    LiFePo4

    Nominal Voltage

    25.6V

    Nominal Capacity

    9.6Ah

    Energy

    245.76Wh

    Internal Resistance

    ≤110mΩ

    Shell materialPVC

    Charge Method

    CC/CV, please use special lithium charger

    Limited Charge Voltage

    28.8±0.15V

    Discharge Cut-off Voltage

    About 20.0V

    Standard Charge Current

    ≤ 2A

    Max. Continuous Discharge Current

    4-20A ( ≤ 5Min)

    Pulse Discharge Current (<3s)

    20A

    Cycle Life

    > 1500 cycles

    Dimension

    Length: 117±3mm

    Width: 112±2mm

    Height: 88±2mm

    Weight

    2.4±0.1Kg

    Operation Temperature Range

    Charge: 0~45℃;

    Discharge: -20~60℃

    Recommended operating temperature: 15℃~35℃

    Self-Discharge Rate

    Residual capacity: ≤3%/month; ≤15%/years

    Reversible capacity: ≤1.5%/month; ≤8%/years

    Storage Temperature & Humidity Range

    Less than 1 month: -20℃~35℃, 45%RH~75%RH

    Less than 3 months: -10℃~35℃, 45%RH~75%RH

    Recommended storage environment: 15℃~35℃,45%RH~75%RH







    CUSTOMIZE

    No matter you are going to replace the conventional lead acid battey or create new battery for golf trolley , tell us your detail requirements, Polinovel offer free design lithium battery pack solution in Specification including:



    -Battery capacity

    -Charge current

    -Discharge current

    -Dimension in LxWxH

    -Terminals & Connectors

    -Logo printing





    Whether you are ready to order or just want a price quote we will do our best to assist you. Please fill in the form below with your contact info, or send your inquiry to sales@plgenergy.com, we will get back to you as soon as possible.




    Send

    25.6V 9.6Ah Golf Trolley Lithium Battery

    Model:  LFP2510
