OVERVIEW

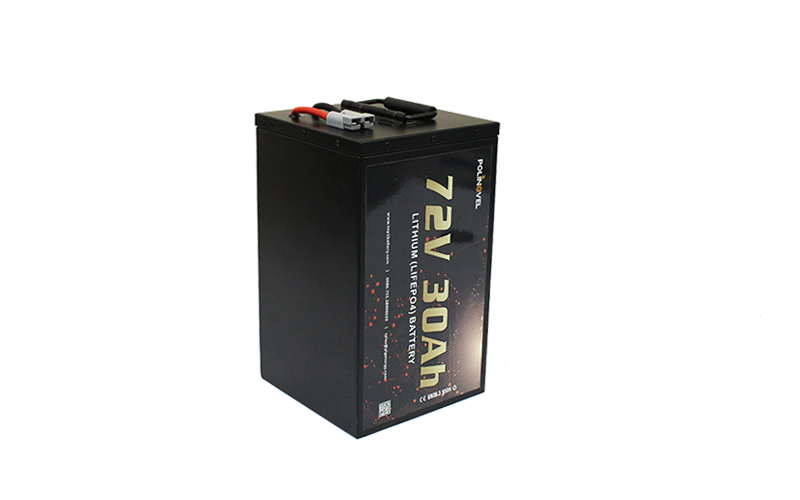

Polinovel's MT series lithium batteries are specially developed for electric scooters, this series battery will covering various votlage, capacity, and sizes to meet the most demand of replacing battery of electric scooter in the market. Battery plastic case designed with plug-play terminal and handle enable you to easy put it in or out.
FEATURES
MT series lithium battery using the most stable chemisty available -lifepo4 (Lithium Iron Phosphate), that are built to be safe, reliable, long-lasting:
Longer life compare to lead acid battery
Up to 60% weight saving
100% usable capacity
More energy with 1/3 smaller size
Less than 3% self discharging
Built in safety protection
Zero maintenance
Easy installation
Eco-friendly
Quality guaranteed
SPECIFICATIONS
Items | Parameter |
Battery Type | LiFePO4 (Lithium Iron Phosphate) |
Nominal Voltage | 73.6V |
Nominal Capacity | 30Ah |
Energy | 2.208KWh |
Internal Resistance | ≤20mΩ |
Charge Cut-off Voltage | 84±0.2V |
Floating Charge Voltage | 79.35±0.2V |
Charge Method | CC/CV |
Discharge Cut-off Voltage | 57.5V |
Standard Charge Current | 20A |
Max. Continuous Discharge Current | 45A |
Pulse Discharge Current | 90A (<10s) |
Cycle Life | > 2000 cycles |
Terminal | Standard 3 Pin Socket for E-scooter |
Handle | Yes |
Dimension | Length: 360±2mm |
Width: 215±2mm |
Height: 215±2mm |
Weight | 22±0.2Kg |
Operation Temperature Range | Charge: 0~45℃; |
Discharge: -20~60℃ |
Recommended operating temperature: 15℃~35℃ |
Self-Discharge Rate | Residual capacity: ≤3%/month; ≤15%/years |
Reversible capacity: ≤1.5%/month; ≤8%/years |
Storage Temperature & Humidity Range | Less than 1 month: -20℃~35℃, 45%RH~75%RH |
Less than 3 months: -10℃~35℃, 45%RH~75%RH |
Recommended storage environment: 15℃~35℃，45%RH~75%RH |
PCM/BMS
Polinovel lithium batteries are all equipped with an internal PCM/BMS which protect against the following potentially damaging circumstances:
1. Over-Charging 2. Over-Discharging 3. Over-Current
4. Over Temperature 5. Short Circuit 6. Cell Imbalance (optional)
DIMENSION DRAWING
Polinovel MT Series lithium batteries are deveoped basing on same battery case size of convenientional lead acid batteries, they are pefect for replacement and recreation.
