Welcome to Polinovel Technology Co., Ltd



  • 图片0


    OVERVIEW


    This 48V 40Ah golf cart lithium battery pack is designed to be drop in replacement for conventional lead acid battery, and it is extremely easy to install with all accessories available. The benefit of lithium battery include much shorter charging time and significant saving in electricity bill, no maintenance, longer lifetime and lighter in weight etc.



    FEATURES

    Every details of this lithium battery pack is designed to help you get better use experience on golf cart.





    High Quality Customized Metal Case                                                                Quality Certified Cables

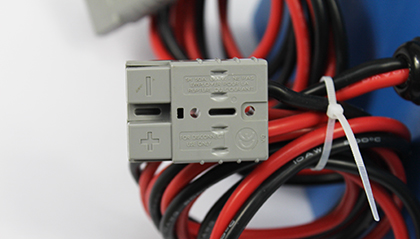

    Considerable Handle Added for Easy Carry                                                       Anderson Connector (Other Types Optional)






    SPECIFICATIONS

    Items

    Parameter

    Battery Type

    Lifepo4 / MnNiCo ternary

    Nominal Voltage

    51.2V

    Nominal Capacity

    40Ah

    Energy

    2.048KWh

    Internal Resistance

    ≤20mΩ

    Communication

    RS485 RS232

    Charge Method

    CC/CV

    Limited Charge Voltage

    58.4±0.2V

    Floating Charge Voltage

    55.2±0.2V

    Discharge Cut-off Voltage

    40.0V

    Standard Charge Current

    10A (OEM)

    Max. Continuous Discharge Current

    40A (OEM)

    Pulse Discharge Current (<5s)

    100A (OEM)

    Cycle Life

    > 2000 cycles

    Dimension

    Length: 590±2mm

    Width: 220±2mm

    Height: 220±2mm

    Weight

    29±0.2Kg

    Operation Temperature Range

    Charge: 0~45℃;

    Discharge: -20~60℃

    Recommended operating temperature: 15℃~35℃

    Self-Discharge Rate

    Residual capacity: ≤3%/month; ≤15%/years

    Reversible capacity: ≤1.5%/month; ≤8%/years

    Storage Temperature & Humidity Range

    Less than 1 month: -20℃~35℃, 45%RH~75%RH

    Less than 3 months: -10℃~35℃, 45%RH~75%RH

    Recommended storage environment: 15℃~35℃,45%RH~75%RH





    CUSTOMIZE

    No matter you are going to replace the conventional lead acid battey or create new battery for golf cart, tell us your detail requirements, Polinovel offer free design lithium battery pack solution in Specification including:


    -Battery capacity

    -Charge current

    -Discharge current

    -Dimension in LxWxH

    -LCD display

    -Handle position

    -Terminals & Connectors

    -Logo printing




    Whether you are ready to order or just want a price quote we will do our best to assist you. Please fill in the form below with your contact info, or send your inquiry to sales@plgenergy.com, we will get back to you as soon as possible.



    Send

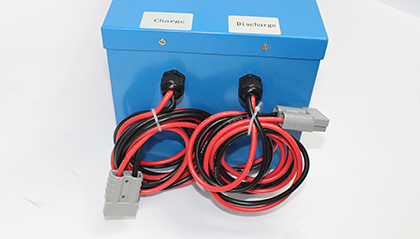

    48V 40Ah Golf Cart Lithium Battery

    Model: LFP4840


    -Tailored metal case to drop-in space
    -Considerate handle for moving
    -Anderson connector for easy connection
    -Strong structure better guarantee the safety and performance
